OBD2 Diagnosewerkzeug mit 2,8" Farbbildschirm Universal Auto Diagnosegerät Deutsch Fehlercodeleser Kfz Auslesegerät Codierung mit Batterietester

CEL FIX FOR FAMILY

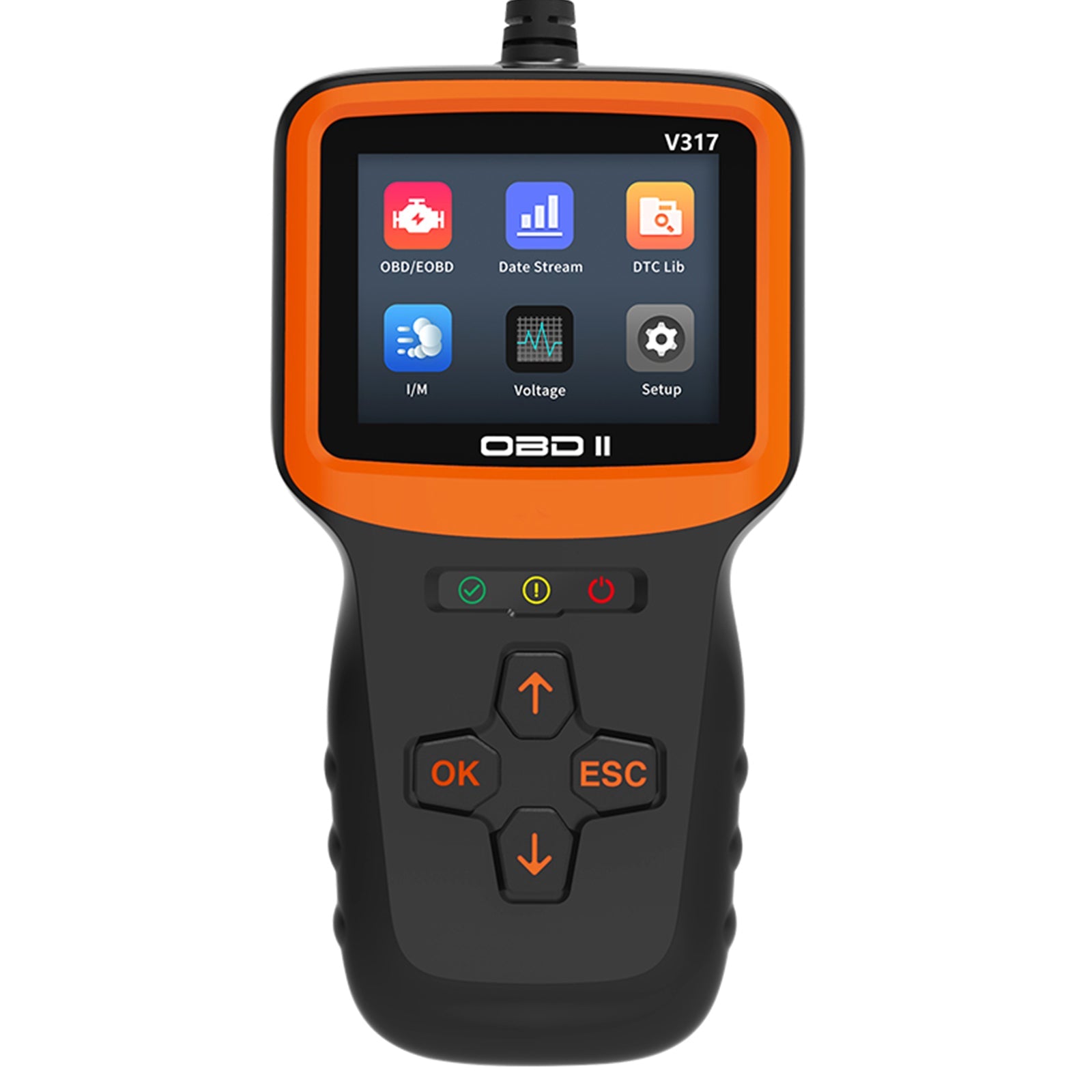

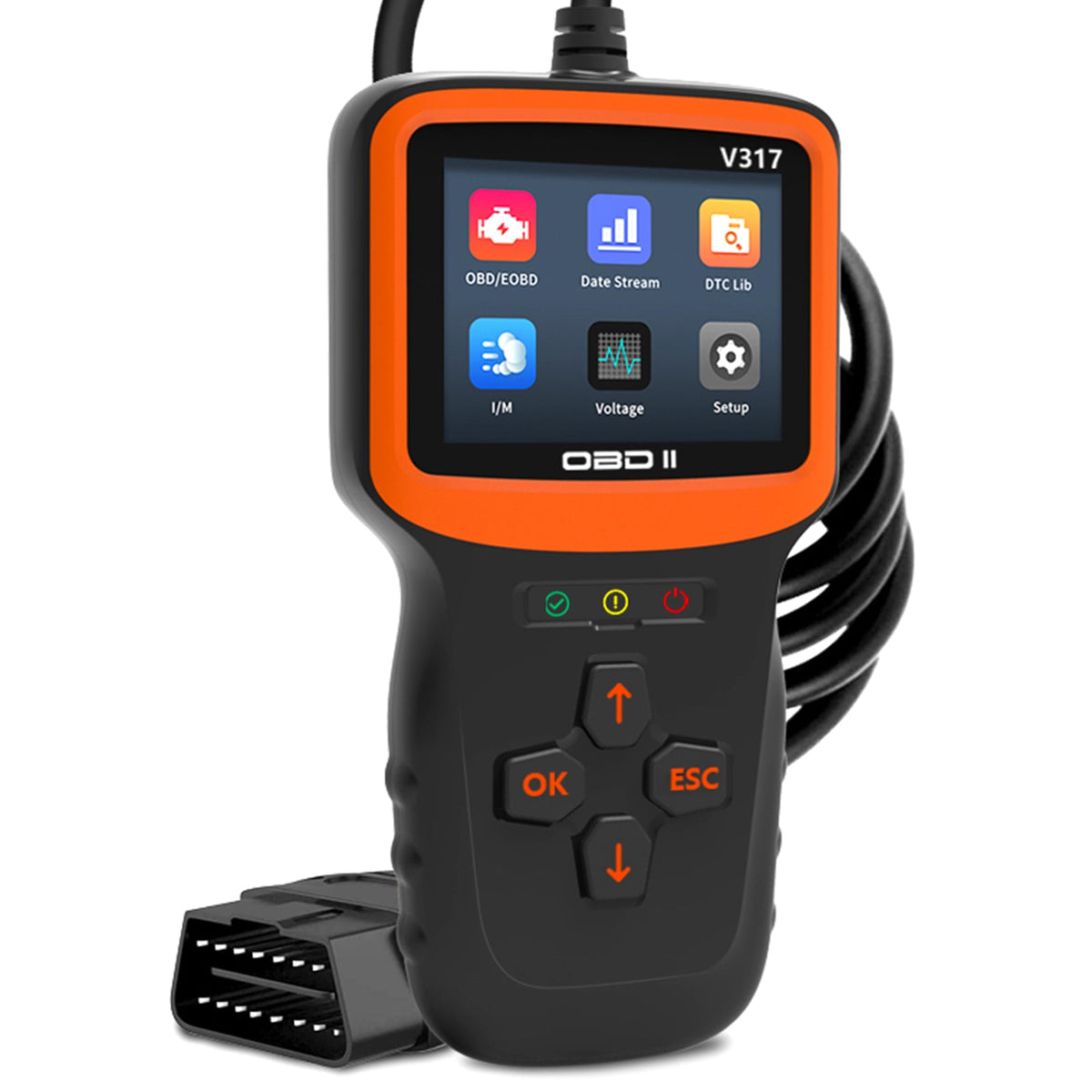

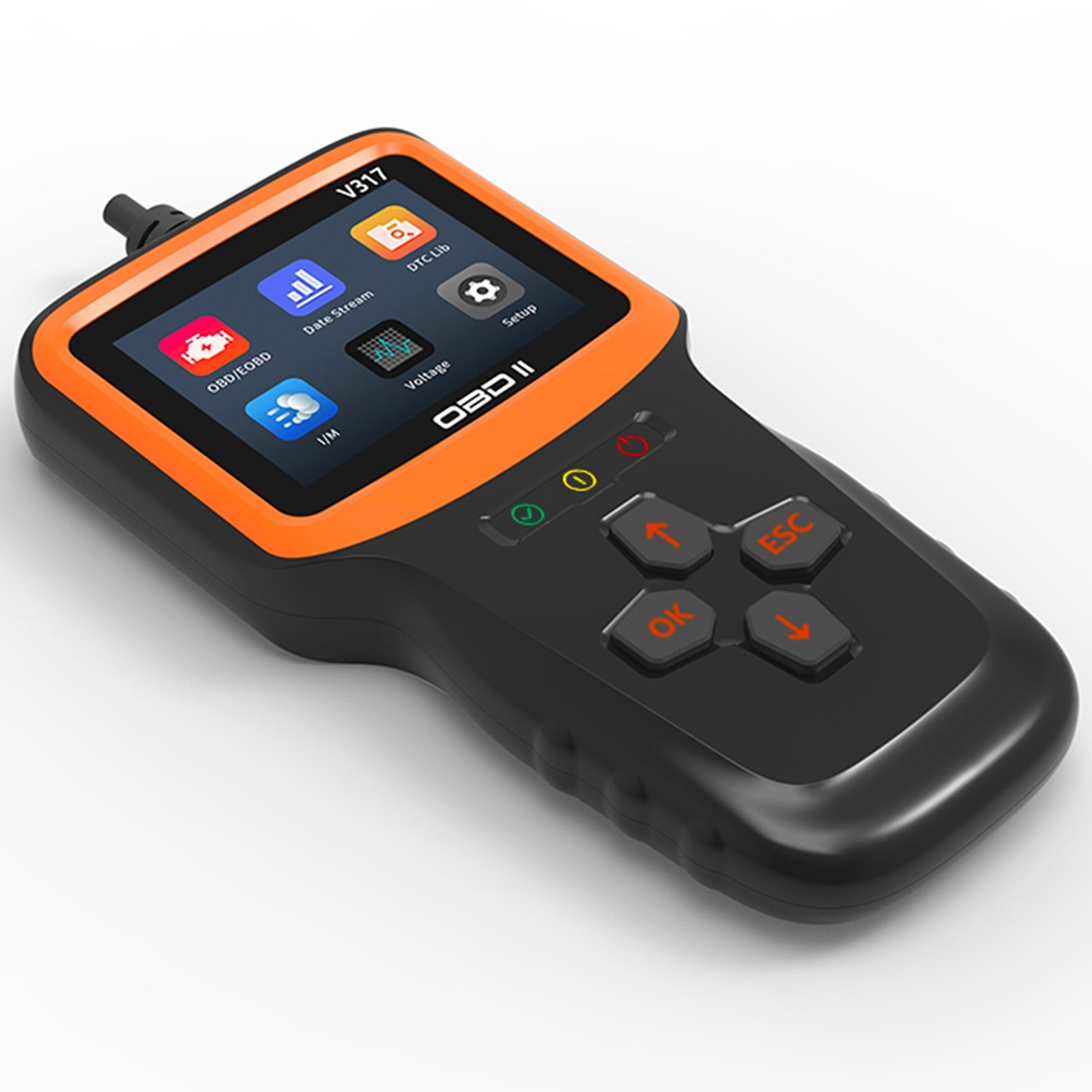

SANNCE V317 OBD2 Diagnostic scanner is designed for all families at an affordable price to assist with the most common automotive engine warning lights issues, namely, check engine light (CEL) faults.

WIDE COMPATIBILITY

Works on most 1996 US-Based, 2000 EU-Based, and Asian vehicles. Displays in English, German, French, Spanish, Italian, Dutch, Russian and Chinese; Requires no battery or charger as the unit gets power directly from the OBDII Data Link Connector in the vehicle.

GET RID OF ANNOYANCE

During this special difficult time, it can be annoying when you found the warning lights on. Built-in OBD2 DTC lookup library, which helps you to determine the cause of the engine light, you can quickly identify if your vehicle needs an immediate fix or if it can wait until you get home to fix it yourself.

DO IT YOURSELF

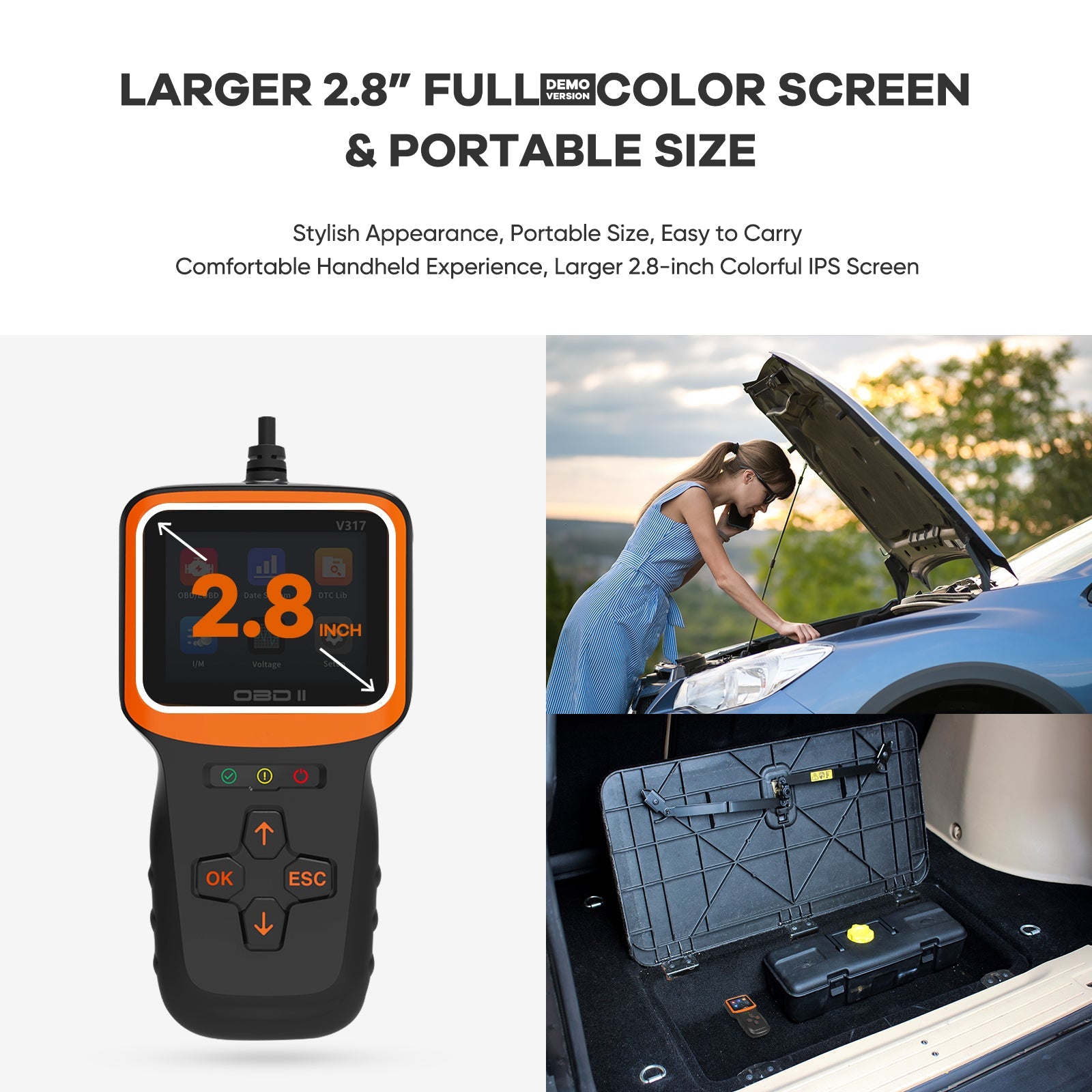

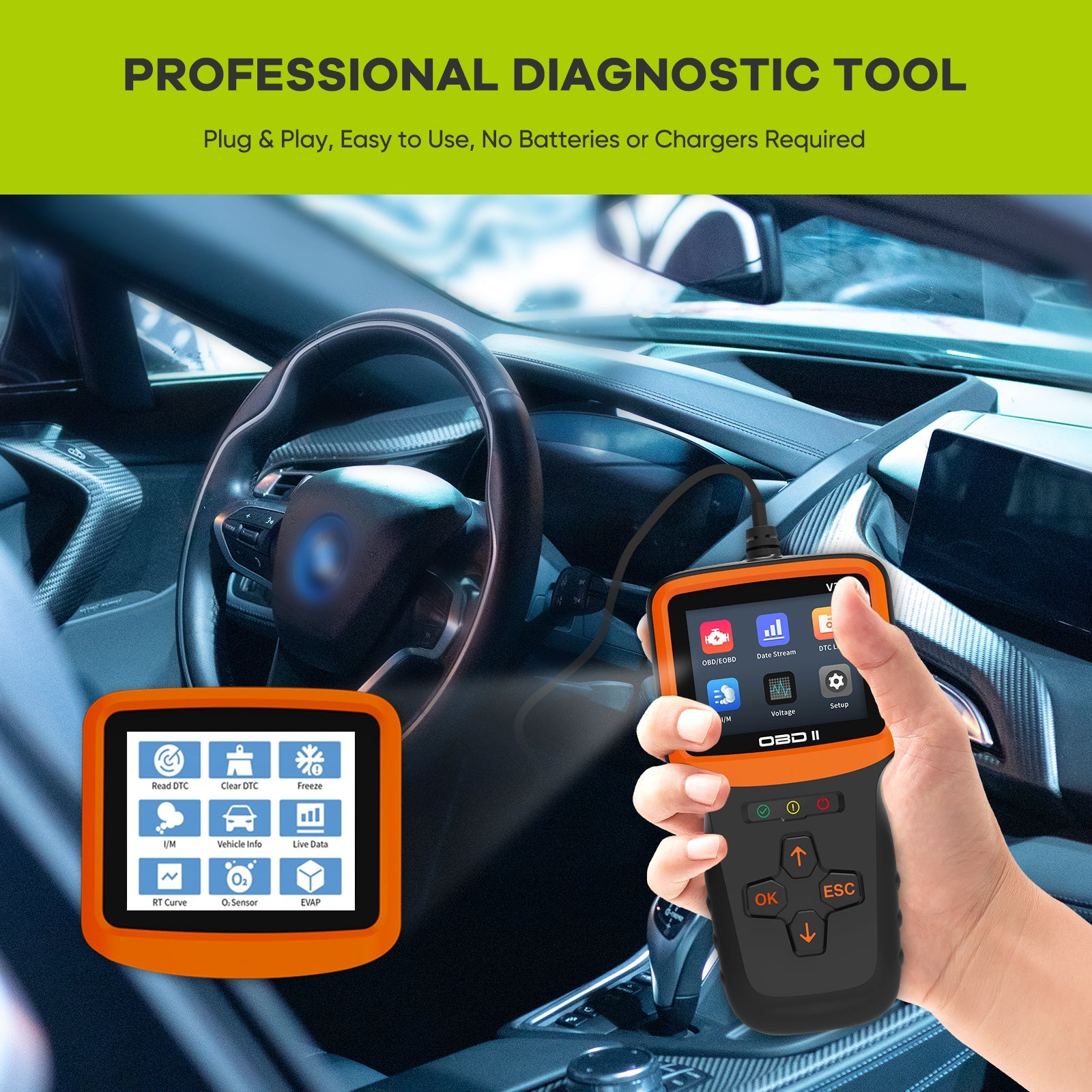

With a 2.8" IPS color screen enables not only can you to read codes to diagnose your car problem directly, but you can also see key information about your vehicle in real-time ( Live Data, Freeze Frame & I/M Readiness, VIN, etc.) to aid in diagnosis. It is a real "PLUG AND PLAY" scan tool, equipped with a 2. 5 feet long cable and made of a very thick flexible insulator, which is very easy to use for beginners.

BATTERY VOLTAGE TEST TO SAVE TIME

SANNCE V317 enhanced scan tool provides battery tests to check the performance of a vehicle's charging system. It does so by checking if the batteries are in line with voltage specs recommended for the car. When troubleshooting a no start or hard start condition, carrying out this test helps to know where to look to save time.

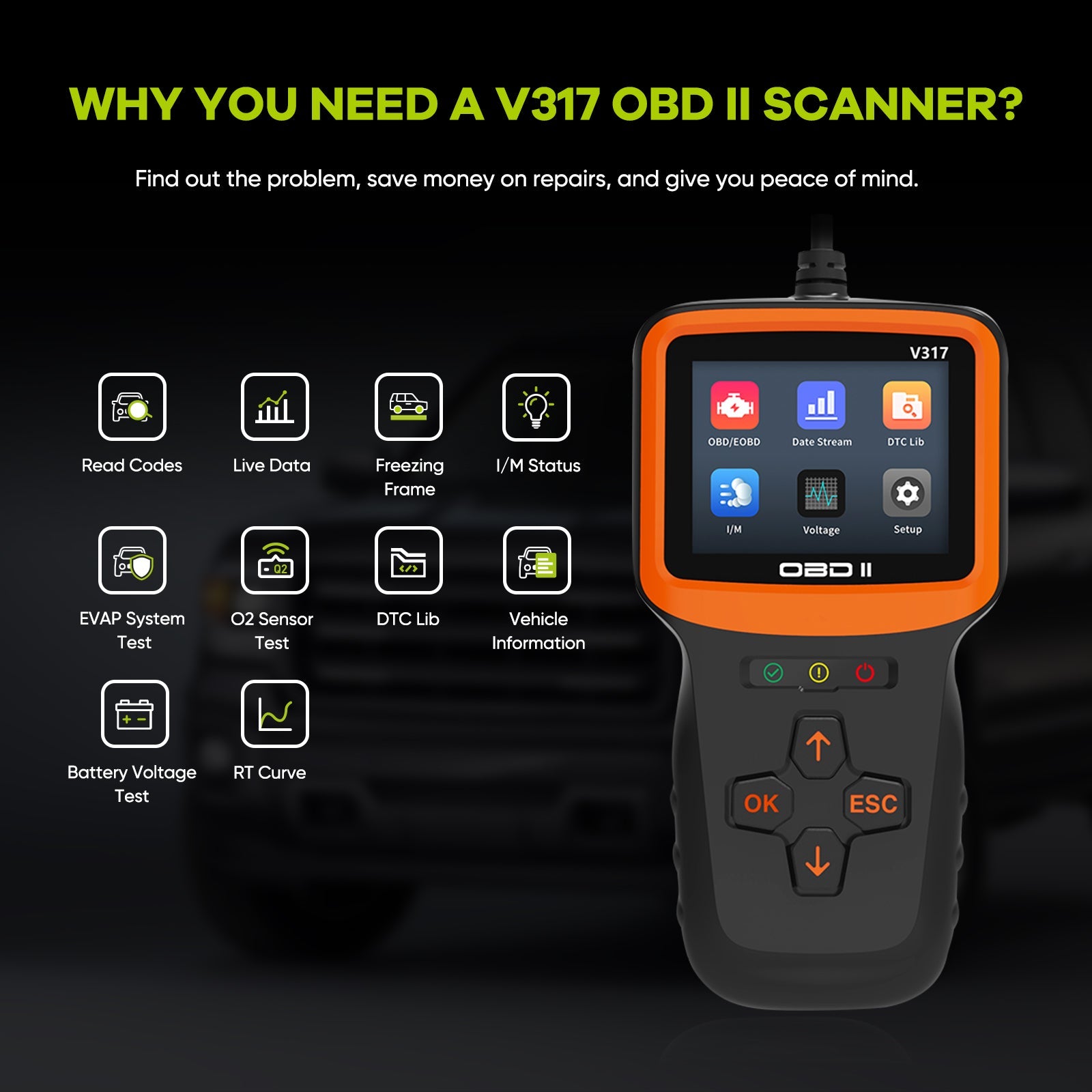

Decode Your Check Engine Light

With the SANNCE CEL scanner you can view:

• Check engine diagnostics
• Issue severity
• Maintenance alerts
• Multi-vehicle examining

Specifications

Model Number: QCL001

• Screen: 2.8" IPS color screen
• Cable: 2.5 feet long cable
• Supported languages: English, German, Dutch, Spanish, French, Italian, Russian, and Chinese
• Working voltage: 12V
• Working current: 51mA
• Standby current: 25mA
• Working temperature: -30℃~70℃
• Working humidity: less than 60%

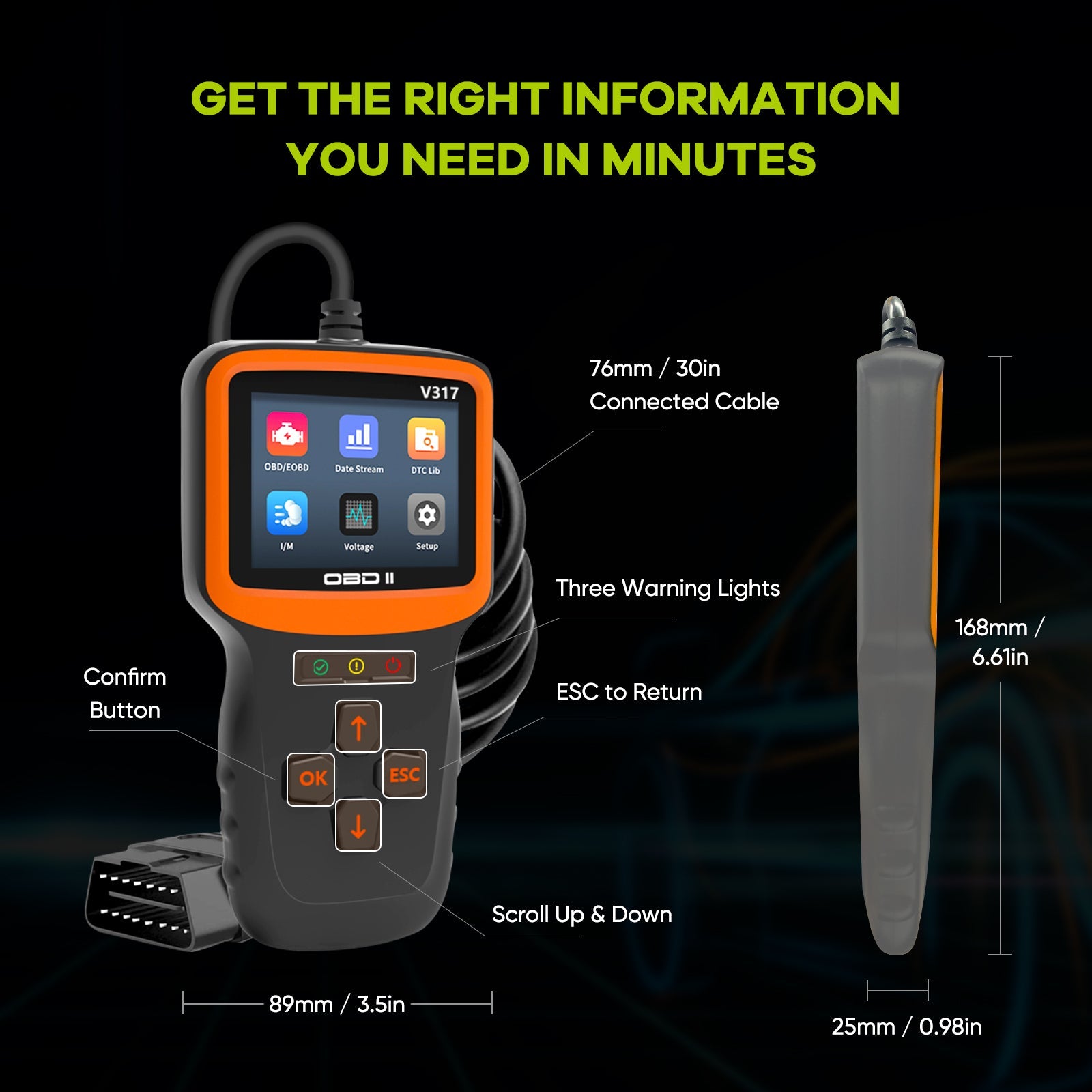

• Size: 168mm * 897mm * 24mm
• Weight: 204g

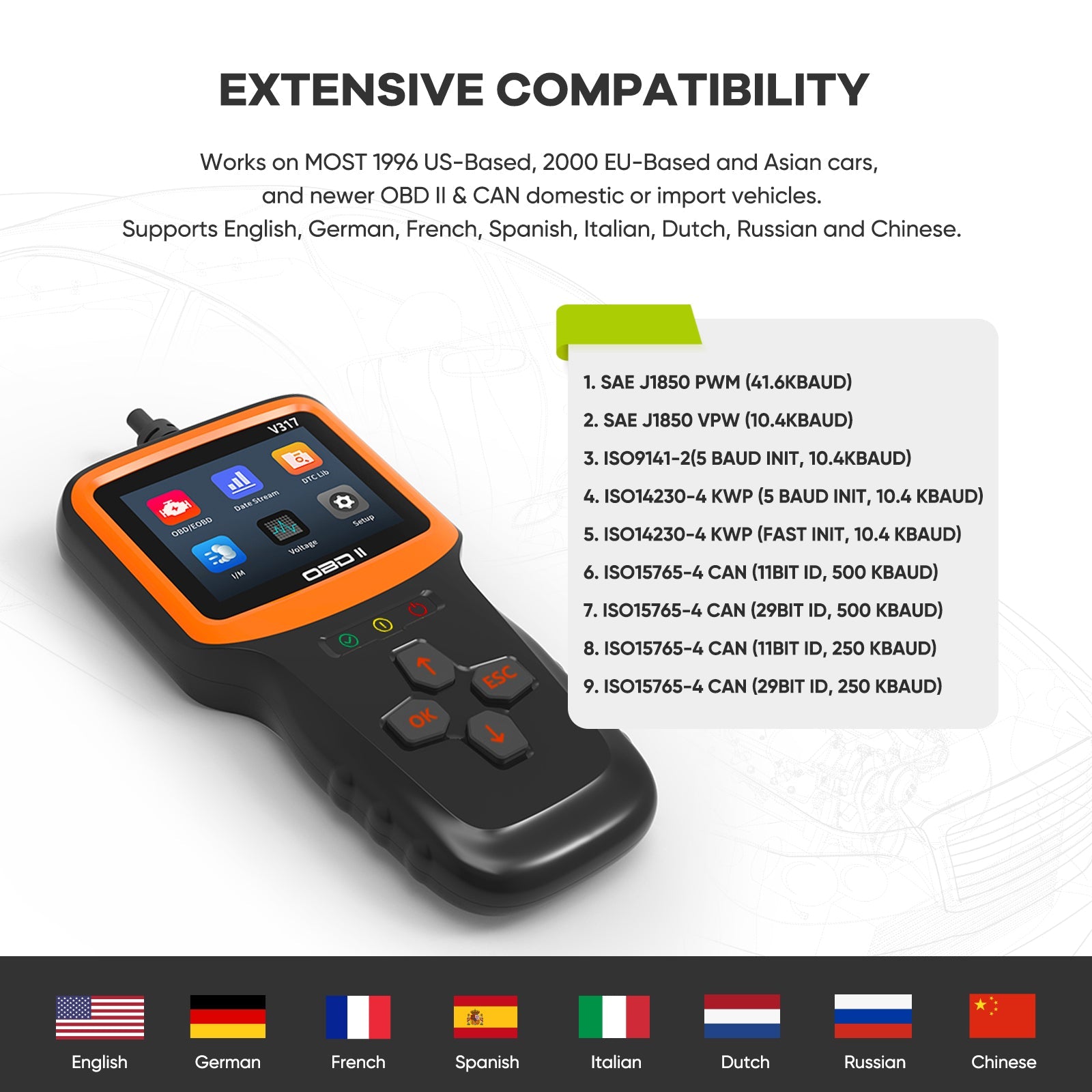

Supported Protocols:

1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init,4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4Kbaud)
5. ISO14230-4 KWP (fast init, 10.4Kbaud)
6. ISO15765-4 CAN (11bit ID, 500Kbaud)
7. ISO15765-4 CAN (29bit ID, 500Kbaud)
8. ISO15765-4 CAN (11bit ID, 250Kbaud)
9. ISO15765-4 CAN (29bit ID, 250Kbaud)
